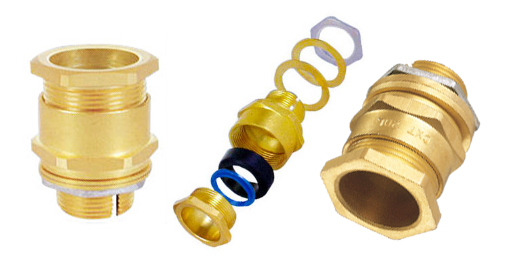

These CXT Type Brass Cable Gland are available in different finishes, sizes and designs as per customers needs and requirements. It provide armour termination and IP66 environment seal on the outer cover of cable using an entry thread washer. Including wire braid armour cable or screened flexible wire braid cable in all type of braided armour cable it is use with this in all indoor and outdoor CXT Type Brass Cable Gland. That is suitable for all types of flexible braided cable. This braided cable use for electrical continuity.
Technical Data :
| Type | : | CXT |
| Design Specification | : | BS 6121 : Part I : 1989 |
| Gland Material | : | Brass |
| Ingress protection | : | IP66 |
| Finish | : | Plain Brass or Nickel Plated |
| Seal Material | : | Thermoplastic Elastomer |
| Cable Type | : | Braided Armour Type |
| Sealing Technique | : | Displacement Type |
| Sealing Area | : | Outer Sheath |
 |
Gland |
Cable Dimensions Accommodated |
Gland Dimensions |
E-Code |
|||||
Overall Diameter |
Dia. “A” |
Dia. “B” |
Metric Entry Thread “C” |
Minimum Thread Length “D” |
Across Flat “E” Max. |
|||
Min. |
Max. |
|||||||
16 |
3.5 |
8.5 |
11.9 |
12.0 |
16 |
15 |
21.3 |
CXTCM16B |
20 SS |
3.5 |
8.5 |
10.2 |
15.4 |
20 |
15 |
23.6 |
CXTCM20SSB |
20 S |
8.0 |
11.5 |
11.9 |
15.4 |
20 |
15 |
23.6 |
CXTCM20SB |
20 L |
11.0 |
13.5 |
14.5 |
17.9 |
20 |
15 |
26.85 |
CXTCM20LB |
25 S |
13.0 |
16.5 |
16.5 |
20.3 |
25 |
15 |
30.5 |
CXTCM25SB |
32 |
19.0 |
25.5 |
26.9 |
31.7 |
32 |
15 |
41.3 |
CXTCM32LB |
40 L |
25.0 |
32.0 |
32.5 |
37.1 |
40 |
15 |
47.0 |
CXTCM40LB |
50 S |
31.5 |
37.0 |
38.6 |
44.2 |
50 |
15 |
55.0 |
CXTCM50SB |
50 L |
36.5 |
43.0 |
44.0 |
48.9 |
50 |
15 |
59.95 |
CXTCM50LB |
Dimensions in mm |
||||||||
